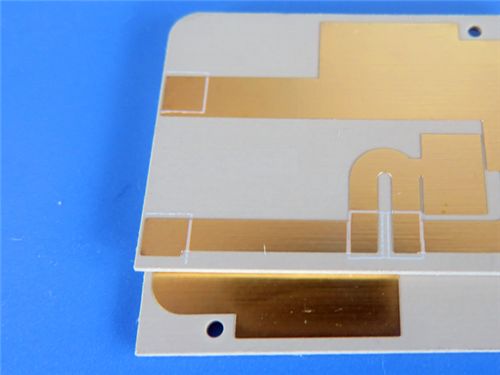

2-layer CuClad 233 RF PCB Board 0.6mm Thick with 108 mm x 59 mm Dimensions and IPC-Class-2 Compliance

This 2-layer rigid PCB, constructed with Rogers CuClad 233 as its base material, is engineered to meet the demands of high-frequency and precision electronic systems. With board dimensions of 108mm x 59mm (1 piece) and a tight tolerance of +/- 0.15mm, it offers a reliable foundation for applications requiring consistent performance in challenging environments.

The 2-layer rigid PCB features a precisely calibrated stack-up to leverage CuClad 233's unique properties:

Artwork Format: Gerber RS-274-X, a universal standard for PCB manufacturing data, ensuring seamless production.

Quality Standard: Complies with IPC-Class-2, guaranteeing reliable performance for general electronic applications.

Availability: Offered worldwide, making it accessible for global projects across industries.

• Electrical Stability: Dielectric Constant (Dk) of 2.33 at 10GHz and 1MHz, with a low dissipation factor of 0.0013 at 10GHz, minimizing signal loss in high-frequency applications.
• Mechanical and Environmental Resilience: Low moisture absorption (0.02%) and strong peel strength (14 lbs/in) ensure durability in harsh conditions.
• Outgassing Control: Ultra-low Total Mass Loss (TML) of 0.01%, Collected Volatile Condensable Material (CVCM) of 0.01%, and zero Water Vapor Regain (WVR), making it suitable for aerospace and high-reliability environments.
• Uniformity: Better dielectric constant uniformity compared to non-woven fiberglass reinforced laminates, ensuring consistent performance across the board.
• Material Balance: High PTFE to glass ratio, enhancing electrical performance while maintaining structural rigidity.

• Stable Dk Over Frequency: Ensures consistent signal propagation across a wide range of operating frequencies.
• Reduced Insertion Loss: Low Dk supports wider line widths, minimizing signal attenuation in high-frequency circuits.
• Low Circuit Losses: Enhances overall efficiency, particularly in microwave and radar systems.
• Scalability: Supports large PCB and antenna formats, making it suitable for applications requiring extended layouts.
• Compatibility: In-plane CTE (Coefficient of Thermal Expansion) matches aluminum used in aircraft skins/structures, reducing thermal stress in aerospace applications.

• Radars
• Electronic Countermeasures and Electronic Support Measures
• Microwave Components (LNAs, filters, couplers, etc.)

For inquiries regarding pricing, you can send gerber file to us. We serve clients worldwide and ensure prompt responses to all queries.
