0.2mm Thickness ISO 9001 Certified 49mm x 27mm Size RF PCB Board High Frequency PCB with Rogers RO3010
  • Ονομασία

0.2mm Thickness ISO 9001 Certified 49mm x 27mm Size RF PCB Board High Frequency PCB with Rogers RO3010

MOQ: 1 PCS
τιμή: USD9.99-99.99
Τυπική συσκευασία: Τσάντες κενού+χαρτοκιβώτια
Περίοδος παράδοσης: 8-9 εργάσιμες ημέρες
Μέθοδος πληρωμής: T/t
Ικανότητα εφοδιασμού: 5000pcs το μήνα
Πληροφορίες Πληροφορίες
Περιγραφή προϊόντος
Λεπτομέρειες
Τόπος καταγωγής
ΚΙΝΑ
Μάρκα
Bicheng
Πιστοποίηση
UL, ISO9001, IATF16949
Αριθμό μοντέλου
BIC-052.V1.0
Βασικό υλικό:
Rogers RO3010
Αρίθμηση στρώματος:
Διπλή όψη
Πάχος PCB:
0,2mm
Μέγεθος PCB:
49mm x 27mm = 1pcs
Βάρος χάλκιου:
1oz (1,4 mils)
Φινίρισμα επιφάνειας:
Κηλιδώνω
Επισημαίνω:

0.2mm Thickness RF PCB Board

,

ISO 9001 Certified High Frequency PCB

,

49mm x 27mm Size Microwave PCB

Περιγραφή προϊόντος

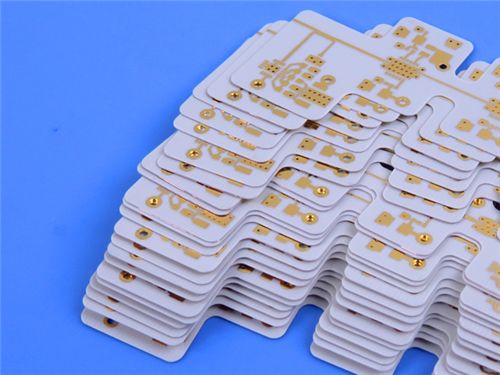

2-Layer RO3010 RF PCB on 5mil Rogers Laminate
This 2-layer PCB, built with Rogers RO3010 as its base material, is a high-performance electronic component engineered for precision and reliability. Measuring 49mm x 27mm (1 piece), this compact PCB leverages the unique properties of RO3010 to deliver exceptional electrical and mechanical stability, making it ideal for a range of demanding applications.
Rogers RO3010 is a ceramic-filled PTFE composite known for its high dielectric constant and excellent stability. As a cost-effective material with superior mechanical and electrical properties, it simplifies broadband component design and performs reliably across a wide frequency range. Its characteristics also support circuit miniaturization, making it a versatile choice for compact electronic systems.
Construction Details
Parameter Specification
Layer Count 2-layer
Board Dimensions 49mm x 27mm = 1PCS
Minimum Trace/Space 4/5 mils, enabling precise routing in compact designs without compromising signal integrity
Minimum Hole Size 0.2mm, accommodating small components for space-efficient layouts
Finished Thickness 0.2mm, ultra-thin design suitable for applications with strict space constraints
Outer Cu Weight 1oz (1.4 mils), ensuring reliable conductivity for various current requirements
Via Plating 20μm thick, enhancing interlayer connection durability against thermal and mechanical stress
Surface Finish ENIG (Electroless Nickel and Immersion Gold), providing superior corrosion resistance and consistent solderability
Silkscreen White on top (clear component identification), none on bottom (simplified design)
Solder Mask None on top or bottom, tailored for specific application needs
Electrical Test 100% tested before shipment (checks for shorts, opens, and impedance) to ensure functionality
PCB Stack-up
Layer Material/Component Thickness
Copper_layer_1 Copper 35μm
Substrate Rogers RO3010 5mil (0.127mm)
Copper_layer_2 Copper 35μm
0.2mm Thickness ISO 9001 Certified 49mm x 27mm Size RF PCB Board High Frequency PCB with Rogers RO3010 0
Artwork: Supplied in Gerber RS-274-X format, the industry standard for seamless manufacturing integration.
Quality Standard: Adheres to IPC-Class-2, ensuring consistent performance for general electronic applications.
Availability: Offered worldwide, supporting global supply chains and project needs.
RO3010 Features
Dielectric Constant: 10.2±0.30 at 10 GHz/23°C, providing stable signal propagation for high-frequency designs.
Dissipation Factor: 0.0022 at 10 GHz/23°C, minimizing energy loss for efficient operation.
Low CTE: 13 ppm/°C (X), 11 ppm/°C (Y), 16 ppm/°C (Z) (-55 to 288°C), ensuring dimensional stability across temperature ranges.
High Td: >500°C, maintaining integrity in extreme heat.
Thermal Conductivity: 0.95 W/mK, facilitating effective heat dissipation.
Moisture Absorption: 0.05%, ensuring reliability in humid environments.
Operating Temperature: -40℃ to +85℃, suitable for harsh conditions.
0.2mm Thickness ISO 9001 Certified 49mm x 27mm Size RF PCB Board High Frequency PCB with Rogers RO3010 1
Benefits of Rogers 3010
  • Dimensional Stability: CTE matched to copper, reducing thermal stress and enhancing reliability.
  • Cost-Effective: Economical pricing ideal for volume manufacturing.
  • Quality Assurance: ISO 9001 certified, guaranteeing consistent production standards.
  • Design Flexibility: Compatible with multi-layer board designs for expanded application potential.
Typical Applications
  • Automotive radar systems
  • Global positioning satellite (GPS) antennas
  • Cellular telecommunications (power amplifiers, antennas)
  • Wireless communication patch antennas
  • Direct broadcast satellites
  • Cable system datalinks
  • Remote meter readers
  • Power backplanes
This PCB combines Rogers RO3010's advanced properties with precise engineering, making it a reliable solution for high-frequency, space-constrained, and performance-critical applications. Its compact size, stable performance, and broad compatibility ensure it meets the demands of modern electronic systems.
