DiClad 870 RF PCB Board 2-Layer with 35μm Copper Layers and 2.5mm Thickness for High-Frequency Applications
προϊόντα

Πίνακας PCB RF

Πίνακας PCB Rogers

Taconic PCB

Πίνακας PCB PTFE

F4B PCB

Πολυστρωματικό PCB

υβριδικά PCB

Πίνακας PCB HDI

PCB υψηλής ταχύτητας

FR 4 Πίνακας PCB

προσαρμοσμένα PCB
Επικοινωνήστε μαζί μας
Ms. Ivy Deng
sales10@bichengpcb.com
86-755-27374847
Επικοινωνήστε τώρα
DiClad 870 RF PCB Board 2-Layer with 35μm Copper Layers and 2.5mm Thickness for High-Frequency Applications
  • Ονομασία

DiClad 870 RF PCB Board 2-Layer with 35μm Copper Layers and 2.5mm Thickness for High-Frequency Applications

MOQ: 1 PCS
τιμή: USD9.99-99.99
Τυπική συσκευασία: Τσάντες κενού+χαρτοκιβώτια
Περίοδος παράδοσης: 8-9 εργάσιμες ημέρες
Μέθοδος πληρωμής: T/t
Ικανότητα εφοδιασμού: 5000pcs το μήνα
Πληροφορίες Πληροφορίες
Περιγραφή προϊόντος
Λεπτομέρειες
Τόπος καταγωγής
ΚΙΝΑ
Μάρκα
Bicheng
Πιστοποίηση
UL, ISO9001, IATF16949
Αριθμό μοντέλου
BIC-052.V1.0
Βασικό υλικό:
Diclad 870
Αρίθμηση στρώματος:
2 στρώματος
Πάχος PCB:
2,5 χιλιοστά
Μέγεθος PCB:
83mm x 35mm (1 τεμάχιο), +/- 0.15mm
Βάρος χάλκιου:
1oz (ισοδύναμο με 1,4 mils ή 35μm)
Φινίρισμα επιφάνειας:
χρυσός βύθισης
Επισημαίνω:

2-Layer RF PCB Board

,

35μm Copper Layers PCB

,

2.5mm Thickness Printed Circuit Board

Περιγραφή προϊόντος
DiClad 870 PCB 2-Layer: 35μm Copper Layers 2.5mm Thickness
This 2-layer rigid PCB, built with Rogers DiClad 870 as its base material, is engineered to excel in high-frequency and low-loss electronic systems. With board dimensions of 83mm x 35mm (1 piece) and a tight tolerance of +/- 0.15mm, it provides a reliable and compact foundation for applications demanding consistent performance in diverse operating conditions.
PCB Details
Construction Detail Specification
Base material DiClad 870
Layer count 2-layer
Board dimensions 83mm x 35mm (1 piece), +/- 0.15mm
Minimum Trace/Space 5/9 mils
Minimum Hole Size 0.3mm
Finished board thickness 2.5mm
Finished Cu weight Outer layers: 1 oz (1.4 mils)
Via plating thickness 20 μm
Surface finish Immersion gold
Silkscreen No
Solder Mask No
Quality assurance (prior to shipment) 100% Electrical test
PCB Stack-up
The 2-layer rigid PCB features a precisely optimized stack-up to leverage DiClad 870's unique properties:
Layer/Material Thickness Specification
Copper_layer_1 35 μm
DiClad 870 Core 2.362mm (93mil)
Copper_layer_2 35 μm
Artwork, Standards, and Availability
Artwork Format: You should supply the file. Gerber RS-274-X, a universal standard for PCB manufacturing data, ensuring seamless production and compatibility with industry workflows.
Quality Standard: Complies with IPC-Class-2, guaranteeing reliable performance for general electronic applications and meeting stringent industry requirements.
Availability: Offered worldwide, making it accessible for global projects across various industries, from telecommunications to aerospace.

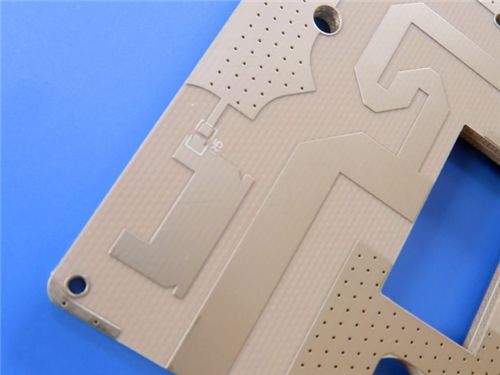

DiClad 870 PCB board sample
Key Features of Rogers DiClad 870
DiClad 870 enhances the PCB's performance with a range of standout features:
  • Electrical Stability: Dielectric Constant (Dk) of 2.33 at 10 GHz and 1 MHz (50% RH), with a low dissipation factor of 0.0013 at 10 GHz and 0.0009 at 1 MHz--minimizing signal loss in high-frequency applications.
  • Thermal Coefficient of Dielectric Constant (TcDK): -161 ppm/°C over the range of -10~140°C (10 GHz), ensuring stable electrical performance across temperature fluctuations.
  • Mechanical and Environmental Resilience: Low moisture absorption (0.02%)--the lowest among PTFE-based composites--along with a copper peel strength of 14 lbs/in (10s @288°C), ensuring durability in harsh environments.
  • Safety and Reliability: Arc resistance >180 seconds and UL 94-V0 flammability rating, enhancing safety in critical applications.
  • Dimensional Stability: Coefficient of Thermal Expansion (CTE) of 17 ppm/°C (X-axis), 29 ppm/°C (Y-axis), and 217 ppm/°C (Z-axis), supporting consistent performance under thermal stress.
Benefits of DiClad 870
These features translate to critical advantages for the PCB:
  • Lowest Moisture Absorption: Ensures long-term reliability in humid or moisture-prone environments.
  • Stable Dk Over Frequency: Maintains consistent signal propagation across a wide range of operating frequencies, critical for multi-band systems.
  • Reduced Insertion Loss: Low Dk supports wider line widths, minimizing signal attenuation and enhancing overall system efficiency.
Typical Applications
Leveraging the performance of Rogers DiClad 870, this PCB is ideally suited for:
  • Radar Feed Networks
  • Commercial Phased Array Networks
  • Low Loss Base Station Antennas
  • Guidance Systems
  • Digital Radio Antennas
  • Filters, Couplers, and LNAs (Low-Noise Amplifiers)
DiClad 870 PCB board close-up
